Land Slope Cluster Dataset Covering Yalu River Basin


LIU Chuang1SHI Ruixiang1HAO Mengmeng1,2
1Institute of Geographic Sciences and Natural Resources Research,Chinese Academy of Sciences,Beijing 100101,China2University of Chinese Academy of Sciences,Beijing 100049,China

DOI:10.3974/geodb.2017.04.21.V1

Published:Nov. 2017

Visitors:224       Data Files Downloaded:80
Data Downloaded:1239.41 MB      Citations:

Key Words:

Yalu River Basin,DEM,slope cluster,Mt. Changbai

Abstract:

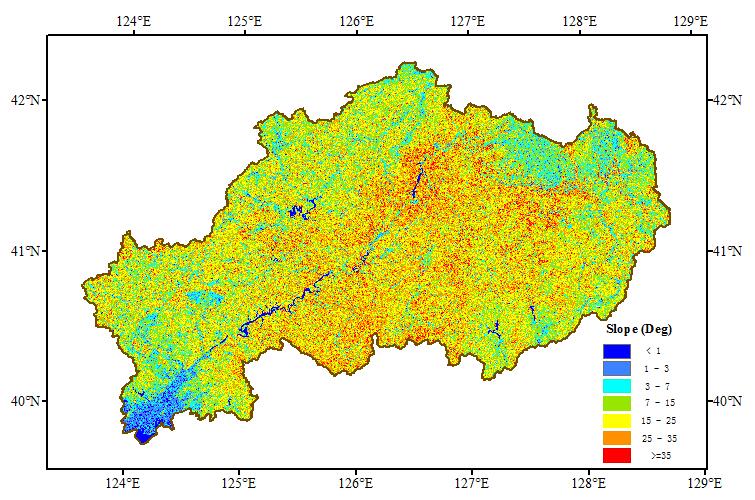

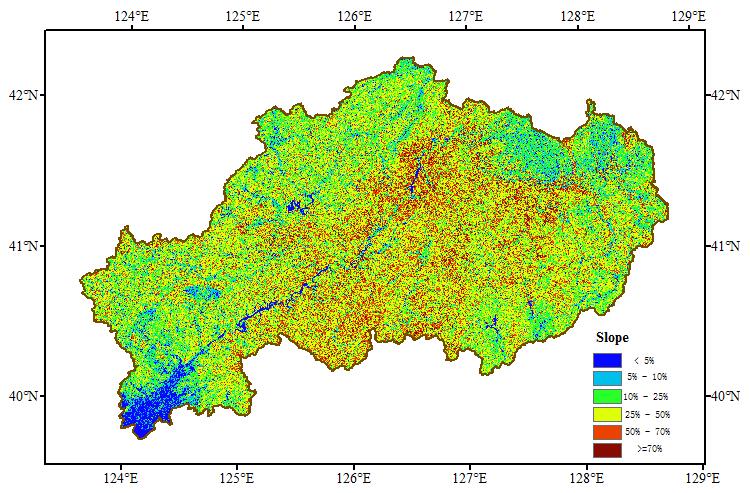

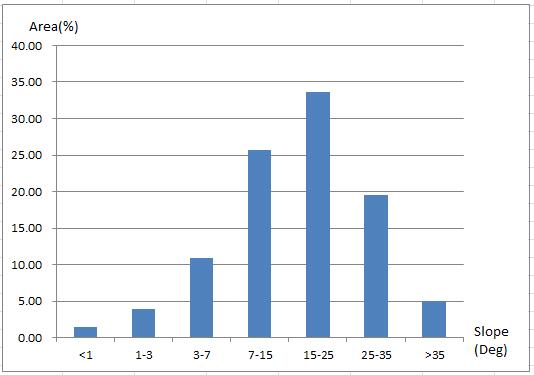

More than 83% land of the Yalu River Basin is located at the mountain area, from the Mt. Changbai at 2745m to the West Korea Bay of the Yellow Sea at 0 m, the high gradient reaches 0.0032, and even 0.01 in some region. Based on the DEM data, the slope cluster datasets were developed, including 7 levels in degrees and 6 levels in per cents. The calculated data indicates that area, which land slope is deeper than 7 degree, covers 83.88% of the Yalu River Basin, 24.54% of which is deeper than 25 degree. The following is the detail information for each land slope clusters: <1°(1.40%),1°-3°(3.88%),3°-7°(10.84%),7°-15°(25.75%),15°-25°(33.58%),25°-35°(19.58%),>35°(4.96%)。<5%(5.05%),5%-10%(7.27%),10%-25%(26.19%),25%-50%(41.23%),50%-70%(15.30%),>70%(4.97%)。The dataset is archived in .adf data format with the data size of 74.4 MB (30.8 MB in compress).

Foundation Item:

Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences (11852701YZ)

Data Citation:

LIU Chuang,SHI Ruixiang,HAO Mengmeng.Land Slope Cluster Dataset Covering Yalu River Basin ( YaluRiverBasinSLC ) [DB/OL].Global Change Research Data Publishing & Repository,2017.DOI:10.3974/geodb.2017.04.21.V1.

Data Product:

ID Data Name Data Size Operation
1 YaluBasinSLDc.rar 16329.38kb DownLoad
2 YaluBasinSLPc.rar 15296.14kb DownLoad
