Dataset of Assessment Units for 19 Urban Built Environment of China Based on Multi-Source Data
ZHANG Shujie1LI Meng*1DAN Boyang1HAN Jingbei1HAO Lingqiang1
1 China Academy Of Urban Planning & Design，Beijing 100044，China
DOI:10.3974/geodb.2025.03.09.V1
Published:Mar. 2025
Visitors：2 Data Files Downloaded：0
Data Downloaded： 无 Citations：
Key Words：
built-up areas,core built-up zones,multi-source data,urban built environment,
Abstract：

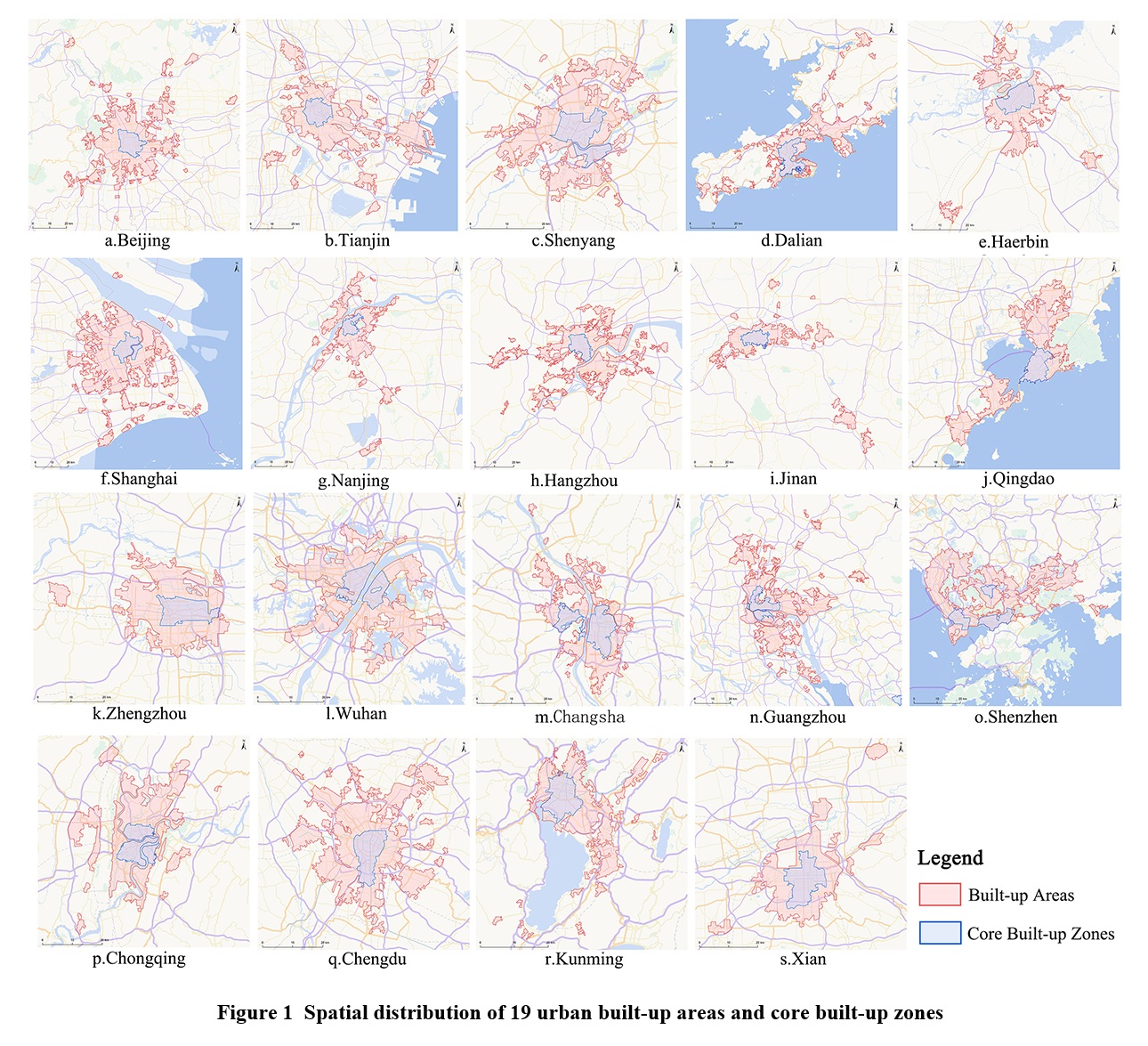

Urban built-up areas and core built-up zones serve as fundamental units for the assessment of the urban built environment, with their sizes directly influencing the levels of built environment indicators. The authors leverage the advantages of multi-source big data to develop a unified demarcation method and technical workflow, resulting in the creation of datasets for the built-up areas and core built-up zones of 19 cities, including Beijing, Shanghai, Guangzhou, Shenzhen, Tianjin, Chongqing, Jinan, Qingdao, Nanjing, Hangzhou, Zhengzhou, Wuhan, Changsha, Chengdu, Kunming, Xi'an, Harbin, Shenyang and Dalian (2022). For the demarcation of built-up areas, a comprehensive consideration of the proportion of impervious surfaces, road network density, point-of-interest (POI) density, and population density was undertaken, along with reference to high-resolution remote sensing imagery. This approach led to the formulation of an index system and method for demarcating built-up areas, enabling a scientific and rapid delineation of urban built-up area boundaries at a 500 m x 500 m grid scale. Regarding the core built-up zones, a four-step process was employed: identifying the city center, recognizing high-density sub-districts and towns, verifying the main urban functional areas and facilities, and deducting open spaces of large non-construction land. This process facilitated the demarcation of core built-up zones in key cities. By unifying the data sources and demarcation methods, two basic spatial scopes with horizontal comparability were established for urban built environment assessment research. The dataset consists of the following data for the 19 cities in 2022: (1) built-up area data; (2) core built-up zone data. The dataset is archived in .shp format, and consists of 16 data files with data size of 2.23 MB (Compressed into one file with 1.37 MB).
Foundation Item：
Ministry of Science and Technology of P. R. China (2022YFC3800202)
Data Citation：
ZHANG Shujie, LI Meng*, DAN Boyang, HAN Jingbei, HAO Lingqiang.Dataset of Assessment Units for 19 Urban Built Environment of China Based on Multi-Source Data[J/DB/OL]. Digital Journal of Global Change Data Repository, 2025. https://doi.org/10.3974/geodb.2025.03.09.V1.
References：
[1] Shu, S., Yu, B. L., Wu, J. P., et al. Methods for deriving urban built up area using night light data: assessment and application [J]. Remote Sensing Technology and Application, 2011, 26(2): 169-176.
[2] Yang, Y., Sun, W. B., Han, Y. H. Extraction method of urban built-up area based on light brightness combination value of DMSP/OLS [J]. Remote Sensing for Land and Resources, 2020, 23(3): 39-48.
[3] Xu, Z. N., Gao, X. L. A novel method for identifying the boundary of urban built-up areas with POI data [J]. Acta Geographica Sinica, 2016, 71(6): 928-939.
[4] Wang, X. Y., Li, C. M., Chen, X. D., et al. A method of built-up area extraction based on nighttime light fusing multi source data [J]. Remote Sensing Information, 2021, 36(5): 114-123.
[5] Zheng, H. H., Gui, Z. P., Li, F., et al. Urban built-up area extraction method based on nighttime light images and point of interest data [J]. Geography and Geo-Information Science, 2019, 35(2): 25-32.
[6] Huang, N., Xu, Z. H., Xu, S. S. An empirical study on development intensity control in the city of Wuhan [J]. Urban Planning Forum, 2012, (3): 96-101.
[7] Jin, T. H., Yang, J. Y., Wang, D. From urban density zoning to form-based zoning: Evolution and demonstration [J]. Urban Planning Forum, 2018(4): 34-40.
[8] Tang, J. X., Long, Y. Metropolitan street space quality evaluation: Second and third ring of Beijing, inner ring of Shanghai [J]. Planners, 2017, 33(2): 68-73.
[9] Chang, Q., Xu, Q. Z., Yang, C., et al. Reflections and explorations on the decrement regulation of construction land in the new Beijing city master plan [J]. City Planning Review, 2017, 41(11): 33-40.
[10] Wang, H. F., Shi, S., Rao, X. J. The spatial distribution logic of urban density: A case study of Shenzhen [J]. Urban Problems, 2015(8): 22-32.
[11] Shi, B. X. The quantitative research on the hard core-agglomeration phenomenon of Asian urban central districts [D]. Nanjing: Southeast University, 2015.
[12] Imhoff, M. L., Lawrence, W. T., Stutzer, D. C., et al. A technique for using composite DMSP/OLS “City Lights”satellite data to accurately map urban areas [J]. Remote Sensing of Environment, 1997, 61(3): 361-370.
